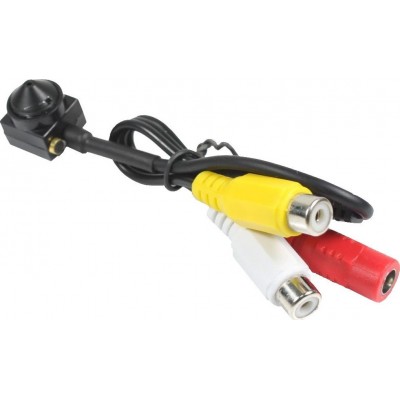

Other Hidden Cameras CCTV Hidden Pinhole camera module. Mini camera. Microphone. HD CMOS. NTSC Version 520 TV Line

CCTV Hidden Pinhole camera module. Mini camera. Microphone. HD CMOS. NTSC Version 520 TV Line.

Reference WAN4102179 Product Other Hidden Cameras.

CCTV Hidden Pinhole camera module. Mini camera. Microphone. HD CMOS. NTSC Version 520 TV Line. Features.

CCTV Hidden Pin Hole Camera Module: 520TV Line,Tiny Mini, Microphone, HD CMOS , NTSC Version

Base on your area, please choose one of the TV system:

PAL: Item number D60701
NTSC: Item number E60701

Manufactory Specifications:
Built-in Sensitive Microphone
Image sensor:1/3" CMOS HD sensor

Horizontal Resolution: 520TV Lines

Effective pixels: PAL: 786 x 576, NTSC:656X492

Sensor Dimension: 4.75mm(H)x3.55mm(V)

Sync. System: Internal

Scanning System: 2:1 Interlace

White Balance: Auto

Mini. illumination: 0.5Lux

Lens: 0.5mm

View Angle: 55 degree

S/N Ratio:better than 52dB

Video output: RCA connector, 1.0vP-P,75ω

Power Consumption: 70mA

Electronic iris(Auto):1/50,1/60-1/100.000sec.

Power supply: 12V (NOT INCLUDED)

Operating temperature: -20°C - 90°C, RH 95%

Storage temperature: -30°C - 80°C, RH 95%

Package Lists:

1x CCTV Hidden Pin Hole Camera Module: 520TV Line,Tiny Mini, Microphone, HD CMOS.

CCTV Hidden Pinhole camera module. Mini camera. Microphone. HD CMOS. NTSC Version 520 TV Line. Data sheet.

Category.

Other Hidden Cameras.

Name.

CCTV Hidden Pinhole camera module. Mini camera. Microphone. HD CMOS. NTSC Version.

Video Resolution.

520 TV Line.

Category	Other Hidden Cameras.
Name	CCTV Hidden Pinhole camera module. Mini camera. Microphone. HD CMOS. NTSC Version.
Video Resolution	520 TV Line.

CCTV Hidden Pinhole camera module. Mini camera. Microphone. HD CMOS. NTSC Version 520 TV Line. Description.

Product reference.

WAN4102179

Plug.

In case of electronic products or those that require connection to the power grid, All products are supplied with the adapter and plug corresponding to the country of delivery of your order. If you need a different adapter than the one used in the country of delivery, please indicate it in the comments of your order.

Actual price.

This product is currently not available.

Description.

Product reference	WAN4102179
Plug	In case of electronic products or those that require connection to the power grid, All products are supplied with the adapter and plug corresponding to the country of delivery of your order. If you need a different adapter than the one used in the country of delivery, please indicate it in the comments of your order.
Actual price	This product is currently not available.
Description	CCTV Hidden Pin Hole Camera Module: 520TV Line,Tiny Mini, Microphone, HD CMOS , NTSC Version Base on your area, please choose one of the TV system: PAL: Item number D60701 NTSC: Item number E60701 Manufactory Specifications: Built-in Sensitive Microphone Image sensor:1/3" CMOS HD sensor Horizontal Resolution: 520TV Lines Effective pixels: PAL: 786 x 576, NTSC:656X492 Sensor Dimension: 4.75mm(H)x3.55mm(V) Sync. System: Internal Scanning System: 2:1 Interlace White Balance: Auto Mini. illumination: 0.5Lux Lens: 0.5mm View Angle: 55 degree S/N Ratio:better than 52dB Video output: RCA connector, 1.0vP-P,75ω Power Consumption: 70mA Electronic iris(Auto):1/50,1/60-1/100.000sec. Power supply: 12V (NOT INCLUDED) Operating temperature: -20°C - 90°C, RH 95% Storage temperature: -30°C - 80°C, RH 95% Package Lists: 1x CCTV Hidden Pin Hole Camera Module: 520TV Line,Tiny Mini, Microphone, HD CMOS.
